Undo operation in SQL Serve

We consider this scenario and implement undo capability in database.

We have developed a software for managing the data center. In this data center, we have all the information of personal, their finance documents, and all their working hours and so on.

After an elementary survey, we need at least the following Entity Relation Diagram (ERD) for data structure in a database and in this case, we use Microsoft SQL Server.

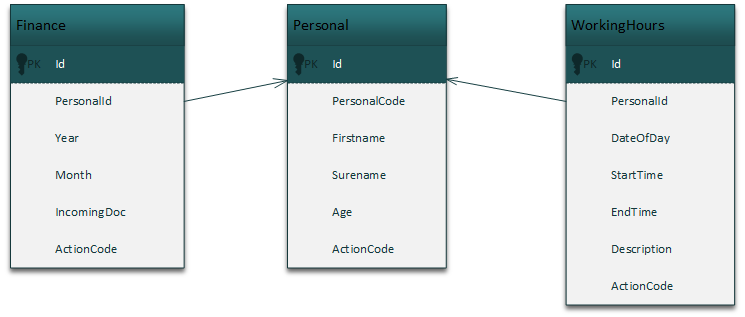

Figure 1: The Entity Relation Diagram
Figure 1: The Entity Relation Diagram

For implementing the undo in database, it has intended to use the Change Data Capture (CDC) feature of SQL Server.

What is CDC?

The CDC makes it possible to capture the data changing in a row in a table. For using CDC, the following steps must be followed.

  1. SQL Server Agency must be active
  2. Active CDC Service for the Database
  3. Active CDC for each table, which its data must be captured.

SQL Server Agency must be started

To be sure if the SQL SERVER AGENCY is running or not we can use the following code to check the current state of SQL SERVER AGENCY.

EXEC xp_servicecontrol N'querystate',N'SQLServerAGENT'

If the service is stopped, we can START it with following Code.

EXEC xp_servicecontrol N'START',N'SQLServerAGENT'

In addition, for more information about the usage of xp_servicecontrol stored procedure the related link is inserted in related links selection.

Active CDC Service for the Database

By default, the CDC is not active in database because it is process and time consuming. However, it is useful for capturing changed data and implementing undo functionality. With following code CDC become active for Database.

USE DatabaseName
GO
EXEC sys.sp_cdc_enable_db
GO

Active CDC for each table

The CDC can become activated for all the columns of a table or for some of them. For starting the CDC the following code is used.

EXEC sys.sp_cdc_enable_table
@source_schema = N'dbo',
@source_name   = N'Table-Name',
@role_name     = NULL

Only four operations are done in a table or occurs for a data row, each of this operation has a number and is saved in __$operation column in CDC table.

1 Delete a new data row.
2 Insert a data row.
3 The old value of updated data row.
4 Update a data row.

After activate the CDC service a CDC table is created for the table under System Tables Folder with following format:

cdc.dbo_TableName_CT

Some points that must be known about CDC:

  • The datatype NVARCHAR(MAX) cannot be captured.
  • After applying a change in the table, which the CDC active, the CDC service become deactivate and must be activated again.

For more information about CDC, a related link is inserted in related links section.

The scenario for using the CDC

We should have a log file. This log is a table with the following columns.

Id : BIGINT ActionName : NVARCHAR(100) IsRedone : BIT

In Logs table the actions that are done on the tables are saved. Each action has a row. Some actions can change some tables but it’s not important this action has a KeyWord, which says what have been done and what should have been redone, furthermore this Action has an ActionCode which is used to follow the action in different tables.

In this case we have three tables Person, Finance and WorkingHours. The ActionNames, which can occur are as follows:

  Table: Person Table: Finance Table: WorkingHours
ActionName InsertPerson InsertFinance InsertWorkingHours
ActionName DeletePerson DeleteFinance DeleteWorkingHours
ActionName UpdatePerson UpdateFinance UpdateWorkingHours

As an example we insert a new person and make a change in person information and then we undo the changes. The above steps are demonstrated in figure 2, 3 and 4.

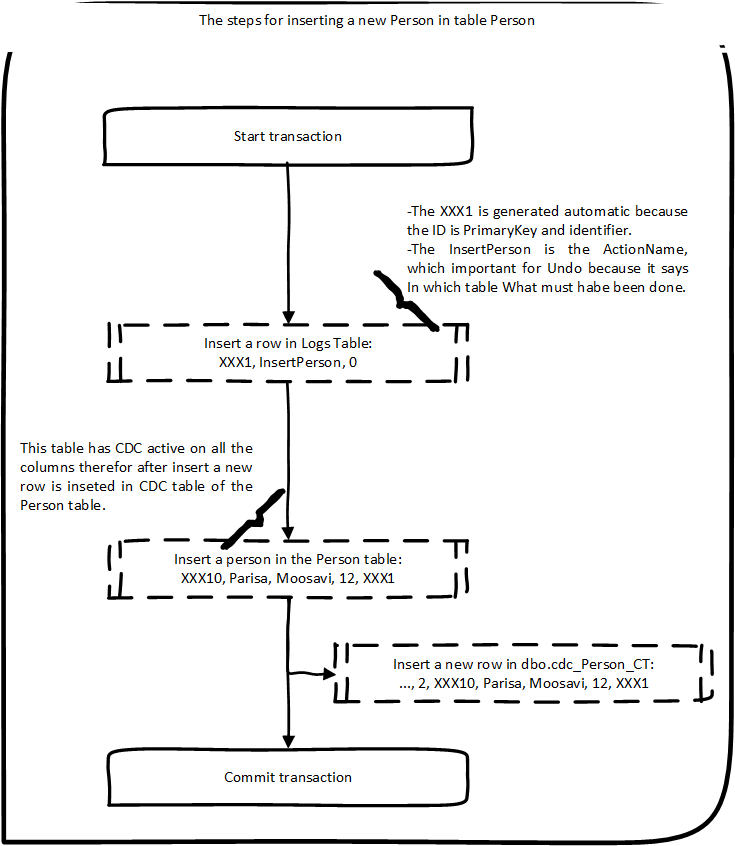

Fiegure 2:The steps for inserting a new Person in table Person
Fiegure 2:The steps for inserting a new Person in table Person

For each change a log-Record must be inserted in Logs table. The ID of the Logs table is the ActionCode which must be saved in related table.

Fiegure 3: The steps of updating a person in person table
Fiegure 3: The steps of updating a person in person table

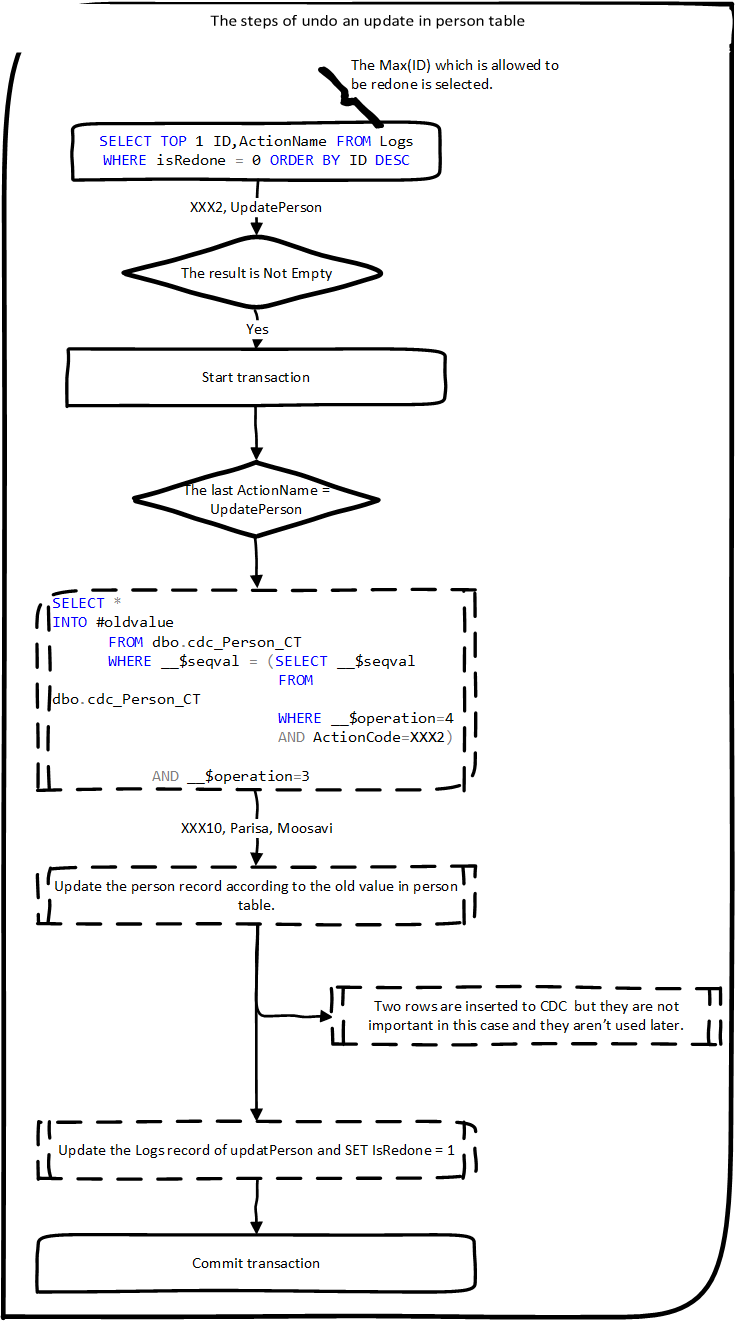

Figure 4: The steps of undo an update in person table
Figure 4: The steps of undo an update in person table
It’s important to know the CDC service doesn’t existed in Azure SQL Database. I tried to do the same in Azure SQL database but it wasn’t possible and after I found the Azure SQL Database features Link which is in related links section.
